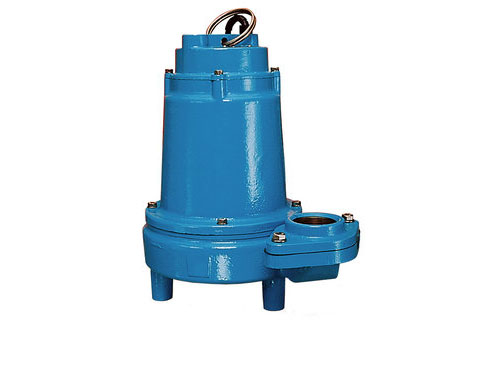

514550 - 16EH-CIM - Little Giant High Head Effluent Pump

514550 - 16EH-CIM - Little Giant High Head Effluent PumpEnlarge Image
Click to Compare

  • Model:  514550
  • Manufactured by:  Little Giant
  • Product Availability: Obsolete
  • Little Giant 514550 Specifications: Little Giant 514550 Specifications

This model number is obsolete:
Contact us for replacement model


514550

1 HP - 90 GPM - 575 Volts - 20 Ft Cord - Three Phase - No Float

APPLICATIONS

  • Boiler blow-down sump pits
  • Transformer vaults
FEATURES

  • 1 hp permanent split capacitor (PSC) motor with overload protection
  • Completely submersible, designed for continuous duty
  • High head model
  • Epoxy coated cast iron housing, cover, volute and non-clog impeller
  • Carbon/ceramic shaft seal
  • Upper and lower ball bearings
  • UL and CSA listed (115 V model)
  • UL listed (208-240 V model)
  • CSA listed (575 V model)
  • CSA Only
SPECIFICATIONS

Capacity: 90 gpm @ 30 Ft (340 lpm @ 9 m)
Shut Off: 81 Ft (25 m)
Liquid Temperature: 140 F (60 C)
Discharge: 2 Inch FNPT (51 mm)
Impeller: Non-clog epoxy coated cast iron
Electrical: 230 V, 60 Hz / 208 - 240 V, 60 Hz / 460 V, 50/60 Hz / 380 V, 50 Hz / 575 V, 60 Hz
Operation: Manual*
Solids Handling: 3/4 Inch (19 mm)
* Single-phase pumps can use a mechanical float switch or a single-phase control panel for automatic on/off
